Horse Stable Water Systems, Drinkers & Wash Bays Qatar — Complete Guide | Nice Equestrian

April 1, 2026

📚 QATAR HORSE GUIDE — QATAR EQUESTRIAN EDUCATION SERIES

Blog 5 of 9 — Water Systems, Drinkers & Wash Bays for Qatar

Horse Stable Water Systems, Drinkers & Wash Bays in Qatar — The Complete Guide

⚡ QUICK ANSWER

Every horse in a Qatar stable requires a minimum of 30–50 litres of fresh water per day in cool weather, rising to 60–80 litres per day during Qatar's summer months. A 20-stable barn needs a dedicated 50mm mains water supply, a 1,000-litre break tank with pressure pump, a water softener to manage Qatar's highly mineralised mains water, and an automatic pressure-fill drinker in every stable mounted at 900mm height. Qatar's high water mineral content causes rapid scale build-up in all drinker valves — anti-scale fittings and regular maintenance are essential.

Water is the single most critical nutrient for a horse. A horse can survive weeks without feed but will experience severe health consequences within 24–48 hours without adequate water. In Qatar's summer climate, where a horse may lose 10–15 litres of water per hour through sweating during exercise, maintaining constant access to clean, fresh water is a matter of life and welfare — not simply good management.

Yet water systems are one of the most consistently under-specified elements in Qatar barn design. Undersized supply pipes, incorrect drinker mounting heights, ignored scale problems from Qatar's hard water, and poorly designed wash bays are common in even well-intentioned facilities.

This is Blog 5 of the Qatar Horse Guide. In this blog we cover every element of a complete water system for a 20-stable Qatar barn — from the mains supply connection to the individual stable drinker, the wash bay, the hot water system and wastewater management.

How Much Water Does a Horse Need in Qatar?

Understanding Qatar's specific water consumption demands is essential before designing any stable water system. The figures are significantly higher than temperate climate guidelines.

Situation	Min. Daily (litres)	Qatar Summer (litres)	Notes
Resting horse — cool weather	25–30	—	October to March in Qatar
Resting horse — summer	—	50–60	June to September. AC-stabled horses still sweat significantly
Working horse — cool	40–50	—	Training 1–2 hours daily
Working horse — summer	—	60–80	Can exceed 80L in very hot competition days
Mare with foal	50–60	70–90	Lactation increases water demand by 30–40%
20-stable barn total	600–700 L/day	1,200–1,600 L/day	Plus wash bay, aisle cleaning, feed room: add 500L/day minimum
Total system design flow	—	2,000–2,500 L/day	This is the minimum water system daily capacity for a 20-stable Qatar barn in summer

⚠ QATAR CLIMATE NOTE: In Qatar's summer, a horse that runs out of water — even for 4–6 hours — is at serious risk of impaction colic, heat stress and kidney damage. Water supply failure in summer is a welfare emergency. The water system must have redundancy: a break tank with minimum 1,000 litres stored capacity ensures horses are never without water even during a mains supply interruption.

What Mains Water Supply Does a Qatar Barn Need?

Qatar's mains water is supplied by Kahramaa through a treated municipal network. The supply is reliable in most areas of Doha, Al Rayyan and Al Wakra but requires specific infrastructure considerations for equestrian facilities.

Supply Pipe Sizing

• Minimum 50mm (2 inch) diameter mains water connection for a 20-stable barn. A 32mm domestic supply is completely inadequate — it cannot fill 20 drinkers simultaneously or supply the wash bay at sufficient pressure

• Submit a water demand calculation to Kahramaa when applying for connection — a 20-stable barn qualifies as a commercial agricultural connection, not a domestic connection. Commercial connections have higher flow rates available

• Internal barn water pipework: 32mm main header running the full barn length along the aisle ceiling at minimum 2.5m height. Branch pipes of 20mm to each stable drinker. All in insulated CPVC or PPR plastic pipe — never copper, which corrodes rapidly in Qatar's mains water chemistry

• Pipe insulation: All water pipes in Qatar must be fully insulated — not for frost protection as in Europe, but to prevent the pipe contents reaching dangerous temperatures in summer. Uninsulated black plastic pipes in direct sun can heat water to 60°C+ — dangerously hot for horses and damaging to plastic fittings

• Water meter: Install a separate dedicated water meter for the barn — not shared with the residence. This allows accurate monitoring of daily consumption. Sudden increases in meter reading indicate a pipe or drinker leak

Break Tank and Pressure System

A pressurised break tank system is strongly recommended for any Qatar barn. This provides water storage, consistent pressure, and protection against supply interruptions.

• Break tank capacity: Minimum 1,000 litres for a 20-stable barn. 2,000 litres strongly recommended — this provides full-day supply redundancy if the mains supply is interrupted

• Tank material: Food-grade polyethylene or fibreglass. Never galvanised steel in Qatar — Qatar's water chemistry causes zinc leaching from galvanised tanks which is toxic to horses

• Tank position: Elevated on a concrete platform minimum 3.0m above the barn floor — this provides gravity pressure to all drinkers without a pump. If elevation is not possible, fit a pressure pump and pressure vessel to maintain constant 2–3 bar throughout the barn system

• Tank cover: Sealed lid with UV-stabilised cover — Qatar's sun degrades algae growth in uncovered water tanks within weeks. Insulate the tank to prevent water temperature rise

• Ball valve and overflow: Float-controlled ball valve to maintain constant level. Overflow pipe directed to drainage. Low-level alarm to alert management when tank falls below 30% capacity

✅ PRO TIP: Fit a basic water flow meter and daily totaliser on your barn water main. Checking it every morning takes 10 seconds and will alert you to drinker leaks or pipe failures before they become large problems. A single leaking drinker valve in Qatar can waste 500–1,000 litres per day — invisible unless you monitor consumption.

Why is Qatar's Hard Water a Problem for Horse Stable Drinkers?

Qatar's mains water is among the hardest in the world — produced by reverse osmosis desalination of seawater and then remineralised, it contains very high levels of calcium and magnesium. This hardness causes rapid limescale build-up inside all water fittings, valves and pipes.

• Drinker valve failure: The pressure-actuated valves in automatic horse drinkers are precision engineered with tight tolerances of 0.1–0.2mm. Qatar's scale deposits block these valves within 2–4 months without treatment — the valve sticks open (flooding the stable) or closed (leaving the horse without water)

• Pipe scaling: Over 12–18 months, Qatar's hard water reduces the internal diameter of 20mm branch pipes to effectively 12–15mm, reducing flow rates significantly. Horses in end-of-line stables receive inadequate water flow

• Heater element failure: Any drinker with a heating element (not needed in Qatar for frost but sometimes specified for hygiene reasons) will experience rapid scale deposition on the element, causing failure

• Algae and biofilm: Qatar's warm water temperatures encourage biofilm growth inside water tanks and pipes. Combined with scale roughening pipe surfaces, this creates a hygiene risk in the water supply chain

Solutions for Qatar Hard Water

Solution	How It Works	Qatar Suitability
Inline water softener	Ion exchange removes calcium and magnesium from supply water. Requires periodic salt regeneration. Installed on the main barn supply line	Excellent — best long-term solution for 20-stable barn
Magnetic water conditioner	Magnetic field changes calcium crystal structure so it does not adhere to surfaces. No salt, no maintenance. Fit directly to pipe	Good — effective, low maintenance, no chemicals
Scale inhibitor dosing	Chemical phosphate dosing prevents scale formation. Requires dosing pump and regular chemical supply. Food-safe chemicals only	Acceptable — Mid tier solution. Requires maintenance
Stainless steel drinkers	Scale still forms but stainless steel is easier to descale and less damaged by scale than plastic or zinc drinkers. Acid descaling quarterly	Good — always specify SS in Qatar regardless of softening
Quarterly acid descale	Citric acid or proprietary descaler flushed through system quarterly. Dissolves built-up scale in pipes and fittings	Essential — must be done regardless of other measures

⚠ QATAR CLIMATE NOTE: Never use standard household water softener salt in an equestrian facility softener. Horses on high sodium (salt) intake can develop health complications. Specify a potassium chloride-based softener or a non-salt magnetic system for horse water supplies. Consult your equine veterinarian before installing any chemical water treatment system.

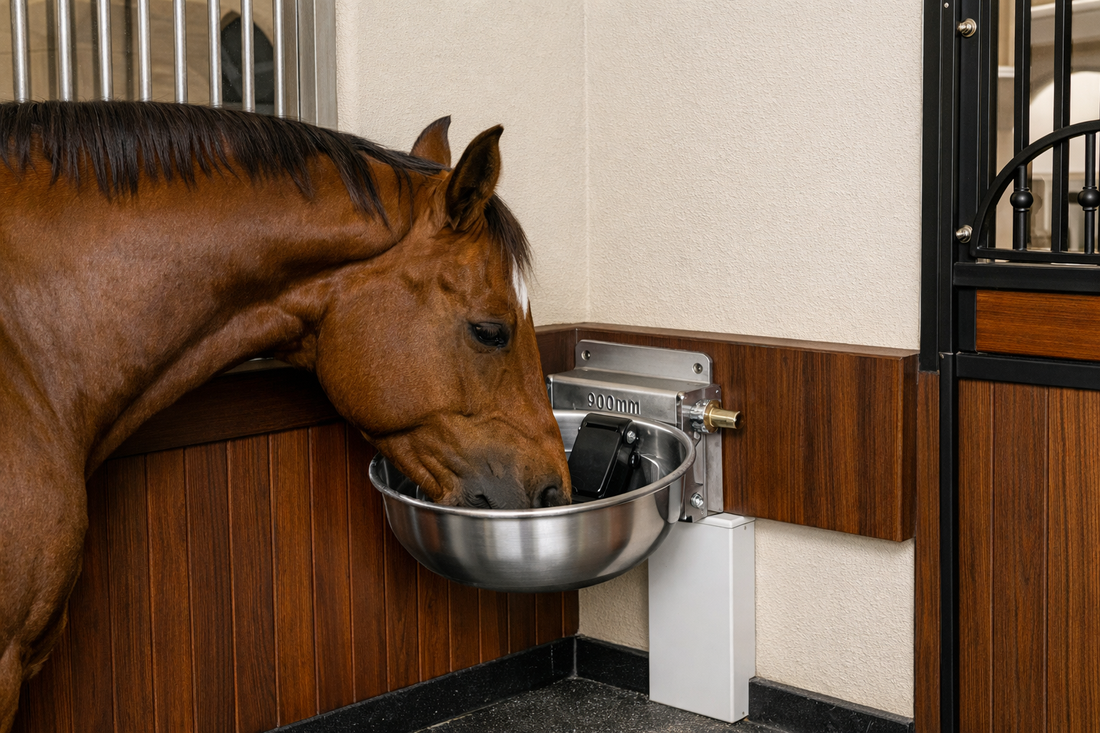

What Automatic Drinkers are Best for Qatar Horse Stables?

Automatic drinkers are the essential water delivery point in every stable. They maintain a constant supply of fresh water without manual refilling, eliminating one of the most time-consuming stable management tasks. In Qatar's summer, where horses require continuous access to large volumes of water, manual bucket watering is not a practical option for a 20-stable barn.

Specification	Qatar Automatic Drinker Requirement
Material	Stainless steel 304 grade — essential in Qatar. Plastic drinkers yellow, crack and become impossible to clean in Qatar's UV and heat within 2–3 years. Zinc or galvanised bowls are toxic — never use in Qatar. Stainless only
Bowl capacity	Minimum 8 litres for a standard horse drinker. 12–15 litre bowl preferred in Qatar so the horse can drink a large volume in one session — reduces valve cycling frequency and valve wear
Valve type	Pressure-actuated paddle valve — activated when the horse pushes its muzzle against the paddle. Simpler and more reliable than float valves in Qatar's hard water conditions. Float valves accumulate scale on the float arm and jam
Valve material	Stainless steel valve seat and nozzle. Brass body. EPDM rubber seal — EPDM resists Qatar's chlorinated mains water chemistry. Never natural rubber seals — they degrade rapidly in Qatar's chlorinated supply
Mounting height	800–950mm from finished stable floor to the bottom of the drinker bowl. Standard recommendation 900mm for a 15hh Arabian horse. Too low and bedding falls in. Too high and the horse cannot drink comfortably. Adjust per breed
Mounting position	Corner-mounted on the partition wall — opposite corner from the hay rack and feed manger. Corner position prevents the horse from pulling or chewing the supply pipe. Corner also maximises stable floor space
Supply connection	15mm (half inch) BSP supply pipe to each drinker. Pipe runs through the block wall in a protective conduit sleeve. Isolating valve accessible outside the stable for maintenance without entering the stable
Drain plug	Every drinker must have a drain plug at the bowl base for complete emptying during cleaning. Weekly cleaning is essential in Qatar — the warm water temperature promotes bacterial growth in the bowl
Flow rate', 2600), dCell('Minimum 10 litres per minute fill rate. For summer Qatar management, a horse finishing a large drink should have the bowl refilled within 90 seconds — important when multiple horses return from exercise simultaneously

✅ PRO TIP: Install an additional standard bucket hook bracket in every stable alongside the automatic drinker. When a drinker fails or is being serviced, a bucket gives immediate manual backup without any delay. In a 20-stable Qatar barn, at least one drinker will require maintenance at any given time — bucket hooks cost almost nothing and provide critical welfare backup.

How Should a Horse Wash Bay be Designed for Qatar?

The wash bay is one of the most heavily used areas in any Qatar barn. In summer months horses are hosed down after every training session to cool them rapidly — a process that may happen 2–3 times daily. The wash bay must be safe, efficient, hygienic and comfortable for both horse and groom.

Wash Bay Dimensions

• Minimum dimensions: 3.0m wide x 4.0m deep for a single-horse wash bay. This allows the groom to work safely around all sides of the horse without the horse feeling confined

• Recommended Qatar dimensions: 3.5m x 5.0m — the additional length accommodates a full-size Warmblood or large Arabian with room for the groom to work freely

• Height: Minimum 3.0m clear height. Higher is better — low roofs trap heat in Qatar's summer and make the wash bay uncomfortable for horses and grooms

• Covered: The wash bay must be covered — an open wash bay in Qatar's sun creates a surface temperature that burns horse hooves within minutes. Shade structure minimum: steel frame with corrugated insulated panel roof and 1.5m shade overhangs on all sides

• Location: Adjacent to the barn's main aisle end — easy to lead horses in and out. Downwind of the barn (south end) so spray and humidity do not enter the stable area

Wash Bay Floor

• Non-slip textured concrete or rubber mat surface — safety is paramount. A horse slipping in a wash bay is one of the most common serious injuries in equestrian facilities

• Floor slope: 1:40 toward a central or rear channel drain — steeper than stable floor because wash water volumes are much higher

• Drain: Minimum 150mm stainless steel channel drain across the full width of the wash bay. Removable grate for easy cleaning. Connected to a separate drainage line — never to stable drainage

• Tie rings: Two heavy-duty forged steel tie rings at 1.5m and 2.0m height on the side walls. Break-away safety inserts mandatory

• Wall protection: Tiles or rubber matting on walls to minimum 1.8m height on all sides — horses kick and lean against wash bay walls

Wash Bay Water Fittings

• Hot and cold mixer tap at 1.5m height — essential for Qatar. Cold Kahramaa water in summer can be 35–45°C from sun-heated pipes. Mixed with hot water from the heater, this gives a controlled 28–32°C wash temperature. Cold water alone is not reliably cold enough in Qatar summer for therapeutic post-exercise cooling

• High-flow hose reel: Retractable hose reel mounted at 2.0m height. 15mm bore hose minimum — larger bore delivers more flow for faster cooling. Hose length: minimum 6m to reach all areas of the wash bay

• Adjustable spray nozzle: Variable pattern from fine mist to full flow. Fine mist for initial cooling after hard exercise — avoids thermal shock. Full flow for rinsing and cleaning

• Showering arch (Posh tier): A fixed pipe arch with multiple spray nozzles that allows automatic showering of the horse from multiple directions simultaneously — used in top Qatar facilities and racing yards

• Soleus hose point: Additional low-level 15mm hose point at 0.4m height for hosing hooves and lower legs — separate from the main hose reel.

Does a Qatar Horse Barn Need a Hot Water System?

Yes — a hot water system is important for a Qatar barn, though for different reasons than in cold climates. In Europe, hot water prevents freeze damage. In Qatar, hot water provides temperature-controlled washing and is essential for the feed room and tack room cleaning.

• Solar water heater — strongly recommended for Qatar: Qatar's solar resource is among the world's best. A rooftop solar water heater provides free hot water from October through April and significantly reduces energy costs June through September. A 200-litre solar system is sufficient for a 20-stable barn wash bay and feed room

• Electric water heater (backup): A 100-litre electric storage heater as backup for periods when solar yield is insufficient. Connect to off-peak Kahramaa tariff if available

• Distribution: 20mm hot water pipe from heater to wash bay, feed room and tack room. Insulate all hot water pipes — uninsulated pipes in Qatar's ambient temperature lose heat rapidly

• Anti-scald valve: Fit a thermostatic mixing valve at the wash bay — this prevents the solar heater delivering dangerously hot water (solar panels can heat water to 80°C+ in Qatar summer). Set to maximum delivery temperature of 45°C

• Qatar note: In summer, mains cold water in Qatar is already 35–45°C from sun-heated street pipes. Adding solar-heated hot water creates a comfortable 38–42°C wash temperature without any mixing adjustment — exactly right for post-exercise horse washing

Water System Specifications — Posh, Mid and Budget Tiers

Element	🏆 Posh Tier	⭐ Mid Tier	✅ Budget Tier
Mains supply	63mm main + break tank 2,000L + VSD pressure pump	50mm main + break tank 1,000L + pressure pump	50mm main + break tank 500L + gravity pressure
Water treatment	Ion exchange softener + UV steriliser + magnetic conditioner	Magnetic conditioner + quarterly acid descale	Quarterly acid descale programme
Stable drinker	SS 15L bowl, paddle valve, SS fittings, corner mount, SS supply	SS 10L bowl, paddle valve, SS fittings, corner mount	SS 8L bowl, float valve, corner mount
Wash bay size	3.5m x 5.0m, tiled walls 2.0m, showering arch, hot & cold	3.0m x 4.5m, rubber mat walls 1.8m, hose reel, hot & cold	3.0m x 4.0m, rough concrete, hose point, cold only
Hot water	300L solar + 150L electric backup + thermostatic valve	200L solar + anti-scald valve	100L electric storage heater
Aisle hose points	One 25mm hose point every 8m along aisle, both sides	One 20mm hose point every 12m along aisle	Two 15mm hose points — one at each end of aisle
Water monitoring	Smart flow meter with daily SMS alert, leak detection	Standard flow meter with manual daily reading	Main meter only — manual monitoring
Indicative cost	QAR 95,000 – 140,000	QAR 45,000 – 70,000	QAR 20,000 – 32,000

Verified Water Drinker Suppliers — Europe and Asia

The following are verified European manufacturers of automatic horse drinkers with full confirmed contact details.

🇩🇪 SUEVIA HAIGES GmbH — Kirchheim am Neckar, Germany (Founded 1923)

📍 Max-Eyth-Strasse 1, 74366 Kirchheim am Neckar, Germany

📞 +49 (0)7143 971-0

✉ info@suevia.com

🌐 www.suevia.com

ℹ Founded 1923 — celebrating 100 years in 2023. Family-owned, now in 4th generation. World-leading manufacturer of automatic animal drinkers and troughs. Full range of horse drinkers: stainless steel bowls, pressure-actuated paddle valves, float valve troughs. Scale-resistant stainless steel fittings throughout. Worldwide export including Middle East. Dealer network globally — contact for Qatar and Gulf region distributor details. Ideal for all three tiers.

🇩🇪 Albert Kerbl GmbH — Buchbach, Germany (Founded 1984)

📍 Felizenzell 9, 84428 Buchbach, Bavaria, Germany

📞 +49 (0)8086 933-100

✉ info@kerbl.com

🌐 www.kerbl.com

ℹ Founded 1984. Family-owned with 500+ employees. One of Germany's leading agricultural supply companies with a comprehensive range of horse stable equipment including automatic drinkers, water troughs, stable management accessories, LED lighting and pest control. Worldwide delivery. UK office: Kerbl UK Limited, 8 Lands End Way, Oakham, LE15 6RF — Tel: +44 1572 722558. Middle East export enquiries via main Germany office. Full product catalogue on website.

🇨🇳 JH Horse Stall — Hebei, China (Founded 2006)

📍 Hebei Province, China

📞 +86 18532363725

✉ Via website contact form

🌐 www.jhhorsestable.com

ℹ Established 2006. Exports to UAE, Saudi Arabia, Bahrain, Kuwait and 50+ countries. Supplies stable accessories including water troughs and basic automatic drinkers alongside their stable systems. Suitable for Budget tier water fittings. Always request product specifications and test certification before ordering water contact products. Delivery approximately 20 working days from China.

Frequently Asked Questions — Qatar Stable Water Systems

Q: How often should automatic horse drinkers be cleaned in Qatar?

Weekly at minimum — daily inspection is strongly recommended. Qatar's warm water temperature (mains water can reach 35°C in summer) promotes rapid bacterial and algal growth in drinker bowls. Empty, scrub with a stiff brush and food-safe disinfectant, rinse thoroughly and refill every 7 days. Monthly: remove and clean the valve and strainer. Quarterly: full descaling of the valve with food-safe citric acid solution to remove scale build-up from Qatar's hard water. Annual: professional inspection of all pipe connections and valve seals.

Q: What is the correct height to mount a horse drinker in Qatar?

The base of the drinker bowl should be at 800–950mm from the finished stable floor for a standard 15–16hh horse. The correct height allows the horse to drink in a natural, slightly lowered head position — not reaching up uncomfortably high or crouching down. For taller Warmbloods mount at 950–1,000mm. For ponies under 13hh, reduce to 650–700mm. Always test the installed height before commissioning — observe the horse drinking and adjust if the neck appears strained in either direction.

Q: Can I use the same water supply for the feed room and tack room?

Yes — all stable service areas are connected to the same mains supply. However, run separate branch pipes to the feed room and tack room rather than extending from the stable drinker circuit. The stable drinker circuit runs at horse-consumption pressure and may not provide adequate flow for feed room bucket filling and tack room cleaning simultaneously. A dedicated service branch from the main 32mm header ensures adequate flow to all service areas independently.

Q: Do I need to notify Kahramaa before connecting a horse barn water supply?

Yes — any new commercial water connection in Qatar requires a Kahramaa application and approval before work begins. A licensed Kahramaa-registered plumber must carry out all connection work to the mains supply. For an agricultural/equestrian facility, apply for a commercial connection — this gives access to higher flow rates than a domestic connection. The application process typically takes 2–4 weeks. Your civil engineer or project manager should handle this as part of the barn construction permits.

Q: Should I install a water softener for a horse stable in Qatar?

Yes — strongly recommended for any barn with more than 5 stables. Qatar's hard water causes drinker valve failure within 2–4 months without treatment. A magnetic water conditioner (no salt, no chemicals, no maintenance) installed on the barn's main water supply line is the most practical solution for a Qatar barn — it prevents scale adhesion without introducing any chemicals into the water. Cost: approximately QAR 800–2,500 for the unit. Payback: within 6–12 months in reduced drinker valve replacements and maintenance labour.
